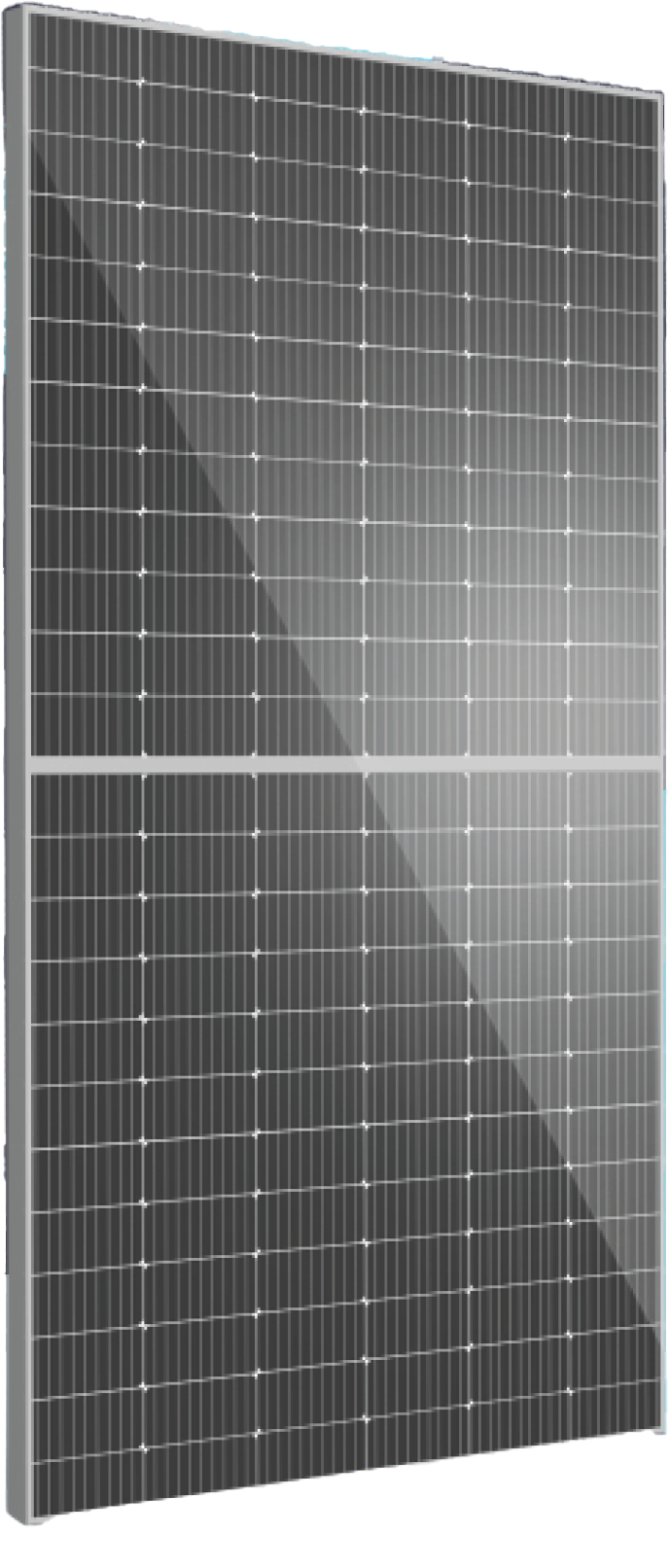

BiFacial Gen-II
ASB-M10-144-AAA (AAA=520-545) 144 Cells | 520-545 Wp| Gen-II
Product Specification
| model | BiFacial Gen || 520 | BiFacial Gen || 525 | BiFacial Gen || 530 | BiFacial Gen || 535 | BiFacial Gen || 540 | BiFacial Gen || 545 |
| Electrical data- All data measured to STC* | ||||||
| Peak power, (0 ~+ 4.99 Wp) Pmax(Wp) | 520 | 525 | 530 | 535 | 540 | 545 |
| Maximum voltage, Vmpp (V) | 41.18 | 41.34 | 41.49 | 41.64 | 41.80 | 41.94 |
| Maximum current, Impp (A) | 12.65 | 12.73 | 12.79 | 12.86 | 12.93 | 13.01 |
| Open circuit voltage, Voc (V) | 48.60 | 48.78 | 48.95 | 49.12 | 49.32 | 49.48 |
| Short circuit current, Isc (A) | 13.41 | 13.55 | 13.55 | 13.63 | 13.71 | 13.79 |
| Module efficiency (%) | 20.15 | 20.34 | 20.54 | 20.73 | 20.92 | 21.12 |
| Packaging Configuration | ||||||
| Container | 40'HC | 40'HC | 40'HC | 40'HC | 40'HC | 40'HC |
| Pallets / Container | 20 | 20 | 20 | 20 | 20 | 20 |
| Pieces / Container | 720 | 720 | 720 | 720 | 720 | 720 |
| Temperature co-efficients(Tc) and permissable operating conditions | ||||||
| T of open circuit voltage (β) | -0.26% /°C | -0.26% /°C | -0.26% /°C | -0.26% /°C | -0.26% /°C | -0.26% /°C |
| T of short circuit current (α) | 0.054% /°C | 0.054% /°C | 0.054% /°C | 0.054% /°C | 0.054% /°C | 0.054% /°C |
| T of power ( ) | -0.32% /°C | -0.32% /°C | -0.32% /°C | -0.32% /°C | -0.32% /°C | -0.32% /°C |
| Maximum system voltage | 1500 VDC (IEC & UL) | 1500 VDC (IEC & UL) | 1500 VDC (IEC & UL) | 1500 VDC (IEC & UL) | 1500 VDC (IEC & UL) | 1500 VDC (IEC & UL) |
| NOCT | 45°C ± 2°C | 45°C ± 2°C | 45°C ± 2°C | 45°C ± 2°C | 45°C ± 2°C | 45°C ± 2°C |
| Temperature range | -40°C to + 85°C | -40°C to + 85°C | -40°C to + 85°C | -40°C to + 85°C | -40°C to + 85°C | -40°C to + 85°C |
| Mechanical Data | ||||||
| Length | 2278 mm | 2278 mm | 2278 mm | 2278 mm | 2278 mm | 2278 mm |
| Width | 1133 mm | 1133 mm | 1133 mm | 1133 mm | 1133 mm | 1133 mm |
| Height | 30 mm | 30 mm | 30 mm | 30 mm | 30 mm | 30 mm |
| Weight | 28 kg | 28 kg | 28 kg | 28 kg | 28 kg | 28 kg |
| Junction Box | IP68; Junction box | IP68; Junction box | IP68; Junction box | IP68; Junction box | IP68; Junction box | IP68; Junction box |
| Cable and connectors | 300 mm length cable, MC4 compatible connectors | 300 mm length cable, MC4 compatible connectors | 300 mm length cable, MC4 compatible connectors | 300 mm length cable, MC4 compatible connectors | 300 mm length cable, MC4 compatible connectors | 300 mm length cable, MC4 compatible connectors |
| Application class | Class A (Safety class II) | Class A (Safety class II) | Class A (Safety class II) | Class A (Safety class II) | Class A (Safety class II) | Class A (Safety class II) |
| Cells | 144 Half-cut mono-crystalline P-type PERC bifacial solar cells; Multi bus bar | 144 Half-cut mono-crystalline P-type PERC bifacial solar cells; Multi bus bar | 144 Half-cut mono-crystalline P-type PERC bifacial solar cells; Multi bus bar | 144 Half-cut mono-crystalline P-type PERC bifacial solar cells; Multi bus bar | 144 Half-cut mono-crystalline P-type PERC bifacial solar cells; Multi bus bar | 144 Half-cut mono-crystalline P-type PERC bifacial solar cells; Multi bus bar |
| Encapsulation | High volume resistivity and low MVTR | High volume resistivity and low MVTR | High volume resistivity and low MVTR | High volume resistivity and low MVTR | High volume resistivity and low MVTR | High volume resistivity and low MVTR |
| Superstrate | High Transmission ARC glass 3.2 mm | High Transmission ARC glass 3.2 mm | High Transmission ARC glass 3.2 mm | High Transmission ARC glass 3.2 mm | High Transmission ARC glass 3.2 mm | High Transmission ARC glass 3.2 mm |
| Substrate | Transparent / Patterned Backsheet | Transparent / Patterned Backsheet | Transparent / Patterned Backsheet | Transparent / Patterned Backsheet | Transparent / Patterned Backsheet | Transparent / Patterned Backsheet |
| Frame | Anodized Frame | Anodized Frame | Anodized Frame | Anodized Frame | Anodized Frame | Anodized Frame |
| Design Mechanical Load | 3600 Pa-downward; 1600 Pa-Upward | 3600 Pa-downward; 1600 Pa-Upward | 3600 Pa-downward; 1600 Pa-Upward | 3600 Pa-downward; 1600 Pa-Upward | 3600 Pa-downward; 1600 Pa-Upward | 3600 Pa-downward; 1600 Pa-Upward |
| Safety Factor for Mechanical Load | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 |
| Maximum series fuse rating | 30 A | 30 A | 30 A | 30 A | 30 A | 30 A |
