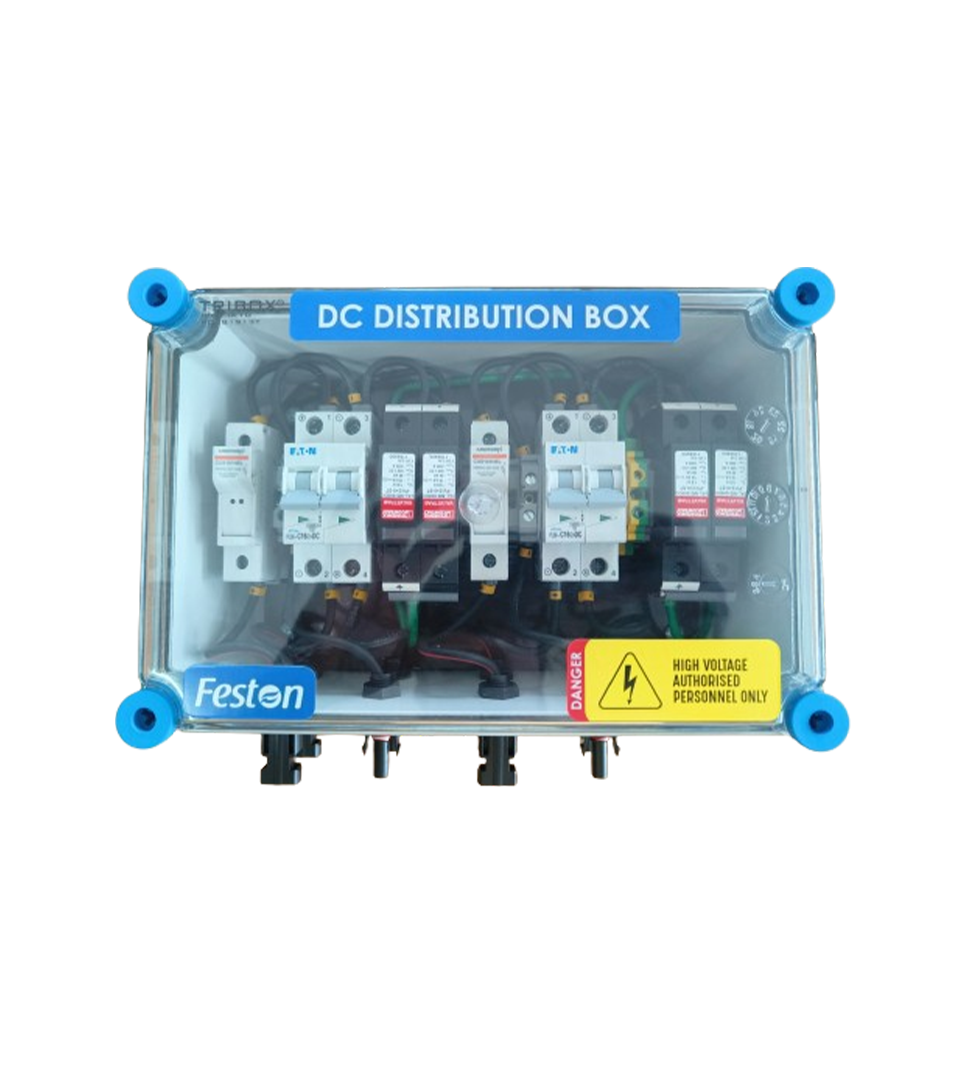

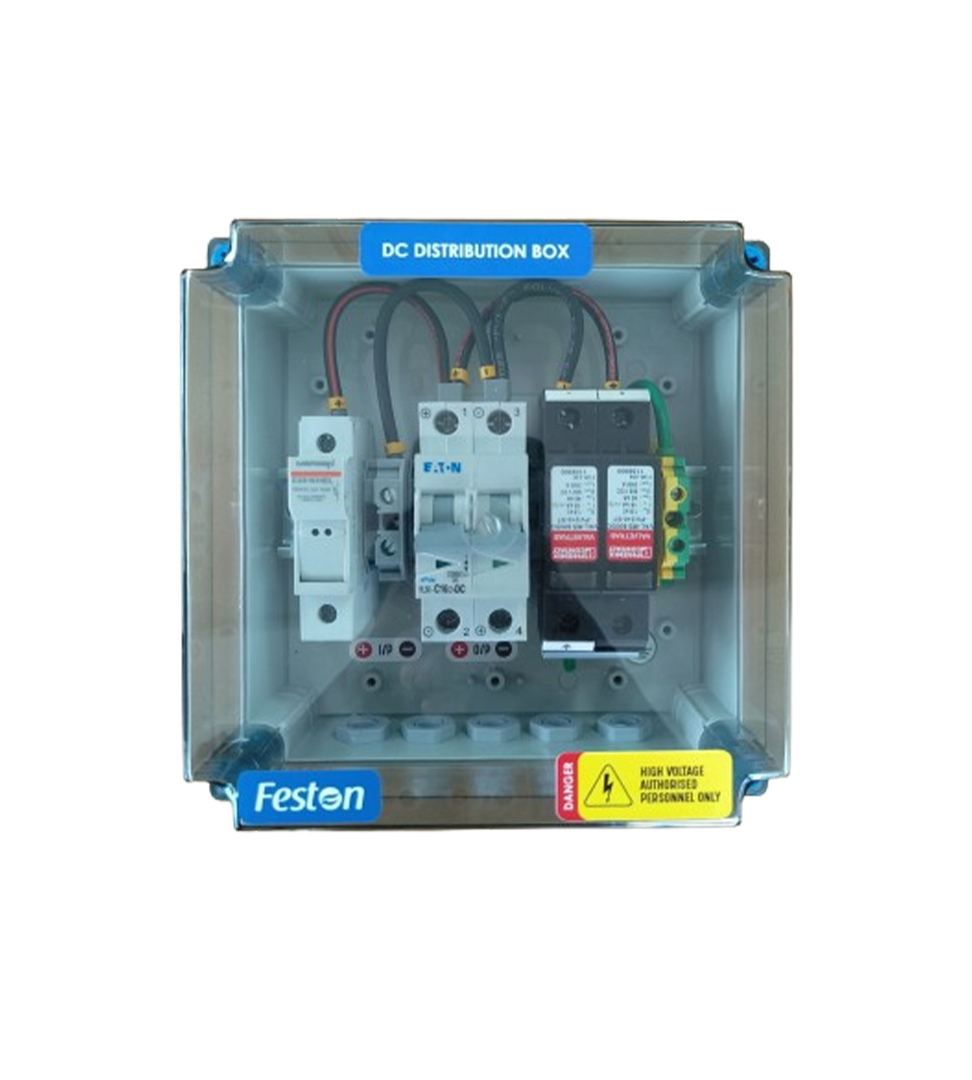

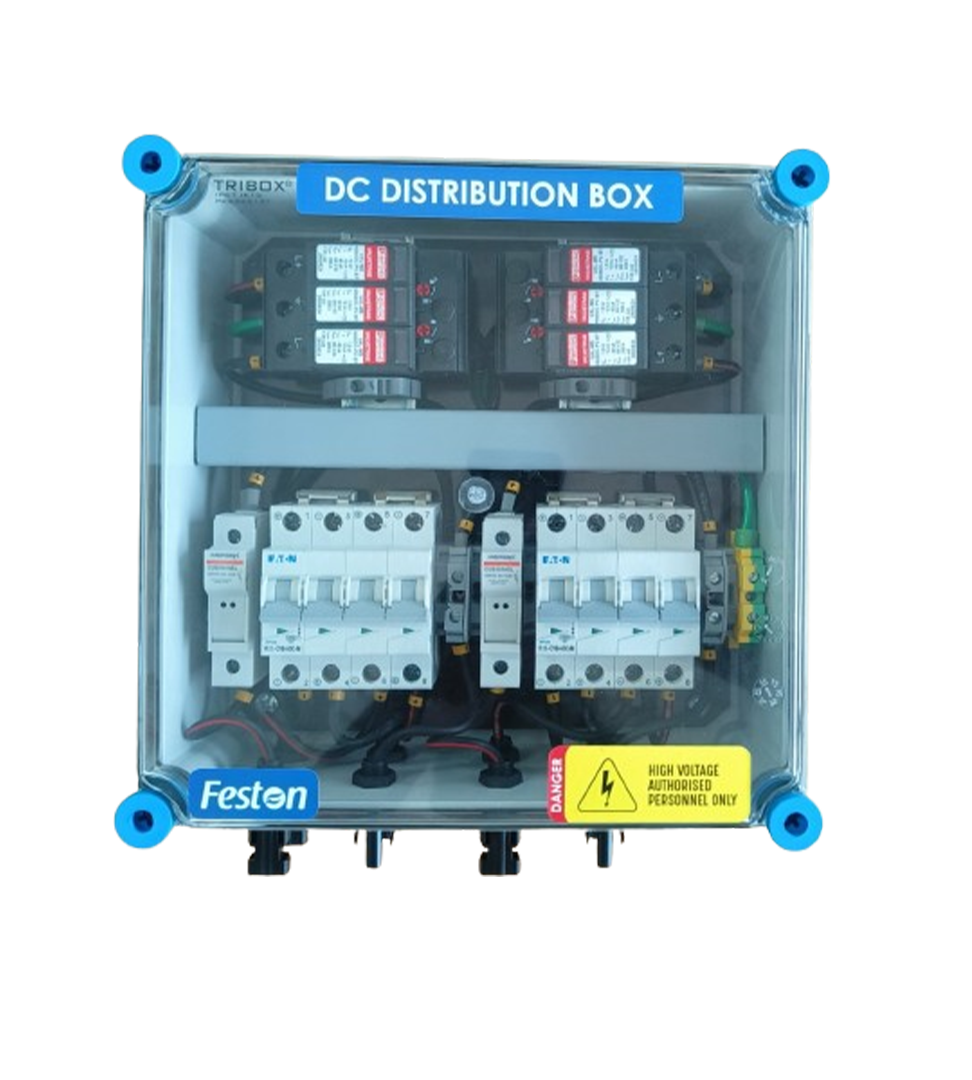

DCDB

Connected directly to the solar panels, where it receives the DC power generated by the panels

DCDB stands for Direct Current Distribution box and is installed between the solar panels and the inverter. This box protects your solar inverter and panels from high voltage and short circuits.

Our ACDB provides:

Protection and Safety
Monitoring and Control
DC to AC Inverter Connection

Product Specification

model	3kW \| Single phase	3.6-6kW \| Single phase	8kW \| Single phase	5-6kW \| Three Phase	8-12kW \| Three phase

Box Type	Tribox	Tribox	Tribox	Tribox	Tribox
Box Size	180x180x100	190x280x130	190x280x130	280x280x130	280x280x130
System Voltage	500 V	500 V	500 V	500 V	1000 V
No. of Strings	1 In 1 Out	2 In 2 Out	2 In 2 Out	2 In 2 Out	2 In 2 Out
MCB Ratings	MCB \| 16A \| 500 V	MCB \| 16A \| 500 V	MCB \| 16A \| 500 V	MCB \| 16A \| 500 V	MCB \| 16A \| 500 - 1000 V
Protection	DC SPD \| Type ll	DC SPD \| Type ll	DC SPD \| Type ll	DC SPD \| Type ll	DC SPD \| Type ll
IP Rating	IP66, IP67 \| PC Transparent	IP66, IP67 \| PC Transparent	IP66, IP67 \| PC Transparent	IP66, IP67 \| PC Transparent	IP66, IP67 \| PC Transparent
Material Type	Polycarbonate \| Glass Top	Polycarbonate \| Glass Top	Polycarbonate \| Glass Top	Polycarbonate \| Glass Top	Polycarbonate \| Glass Top
Connectors	Gland	With MC4 Connectors	With MC4 Connectors	With MC4 Connectors	With MC4 Connectors
