ACDB
3-8kW - Single phase | 5-12kW Three phase
ACDB is an important part of Solar Power Plants & Systems (Hybrid or Grid Tie). It gives extra protection to the system in case of failures on the load side. ACDB is made up of breakers, isolators, voltage and current monitoring, etc.
The AC power is typically at a higher voltage and is ready to be sent to the grid or used on-site. Our ACDB provides:
- Protection and Safety:
- Metering and Monitoring
- Better Grid Connection
- Distribution
Product Specification

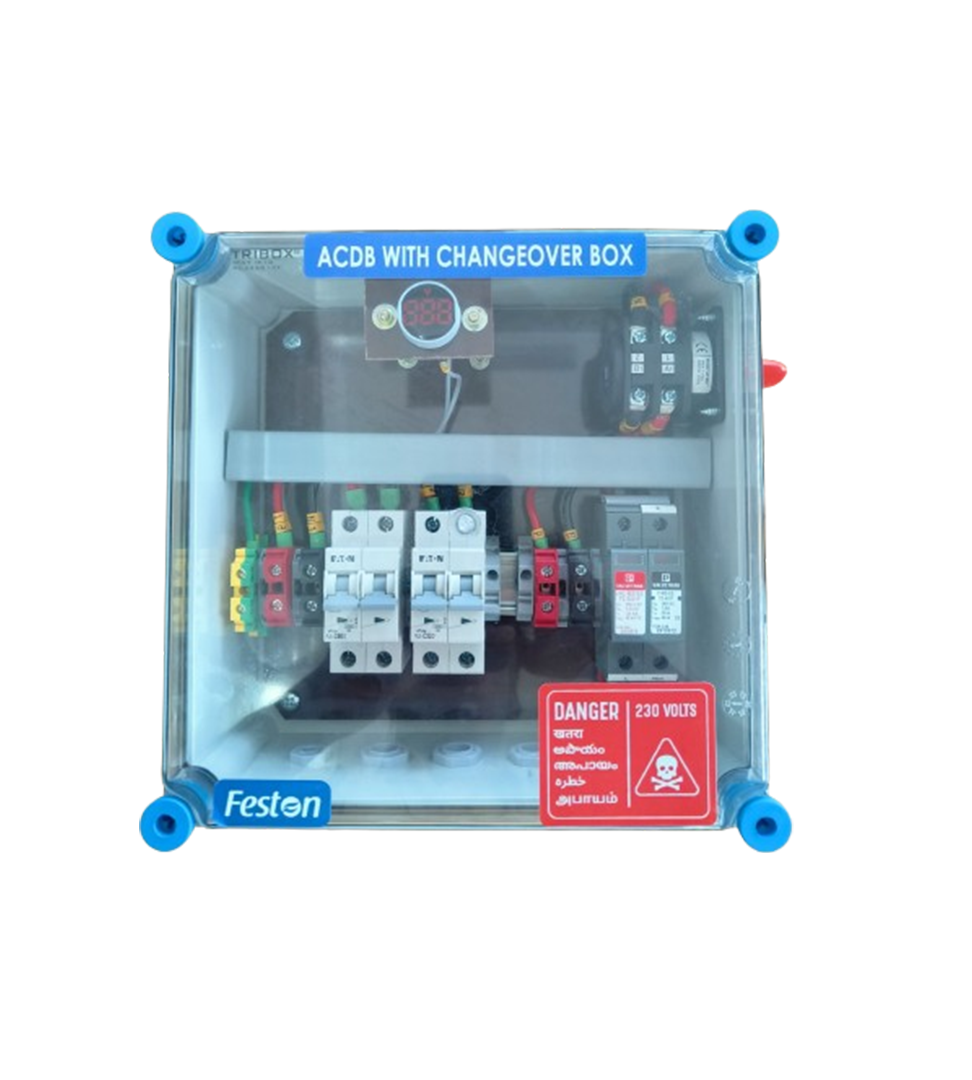

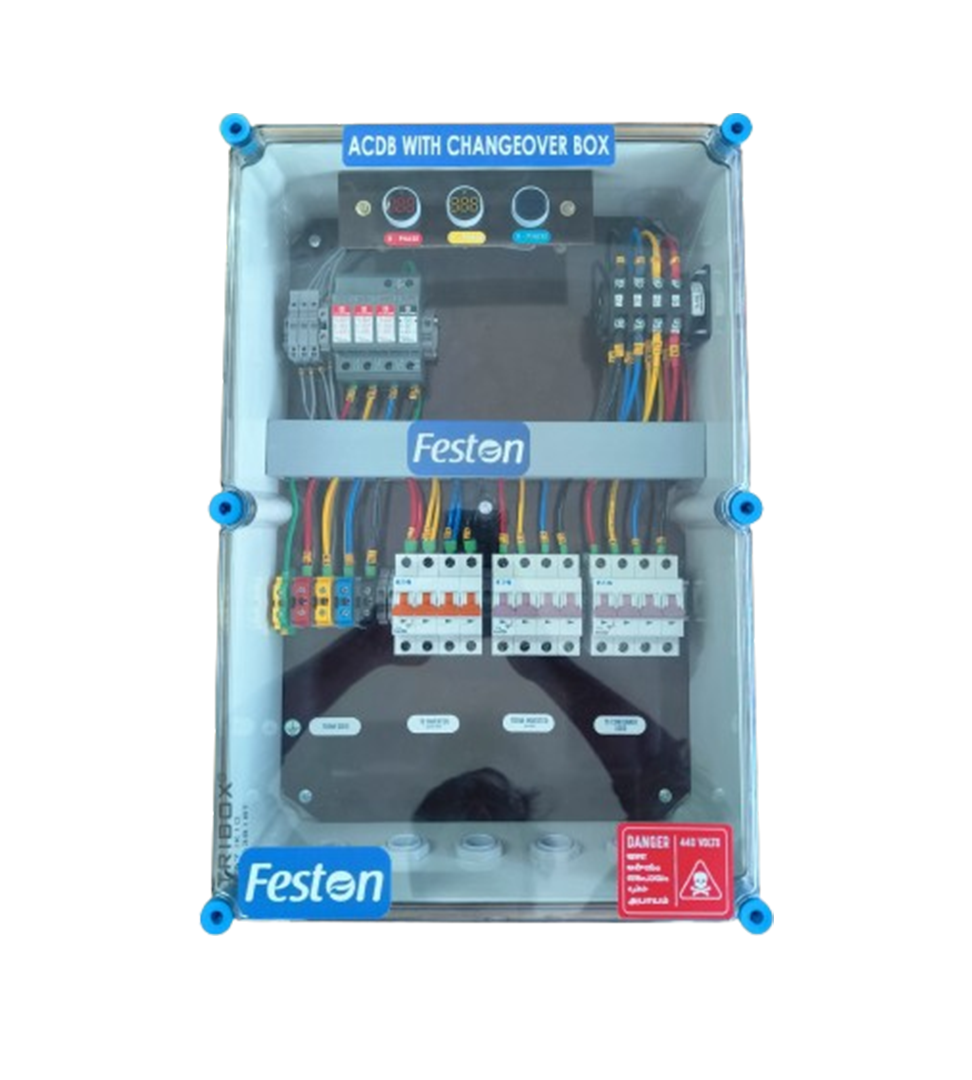

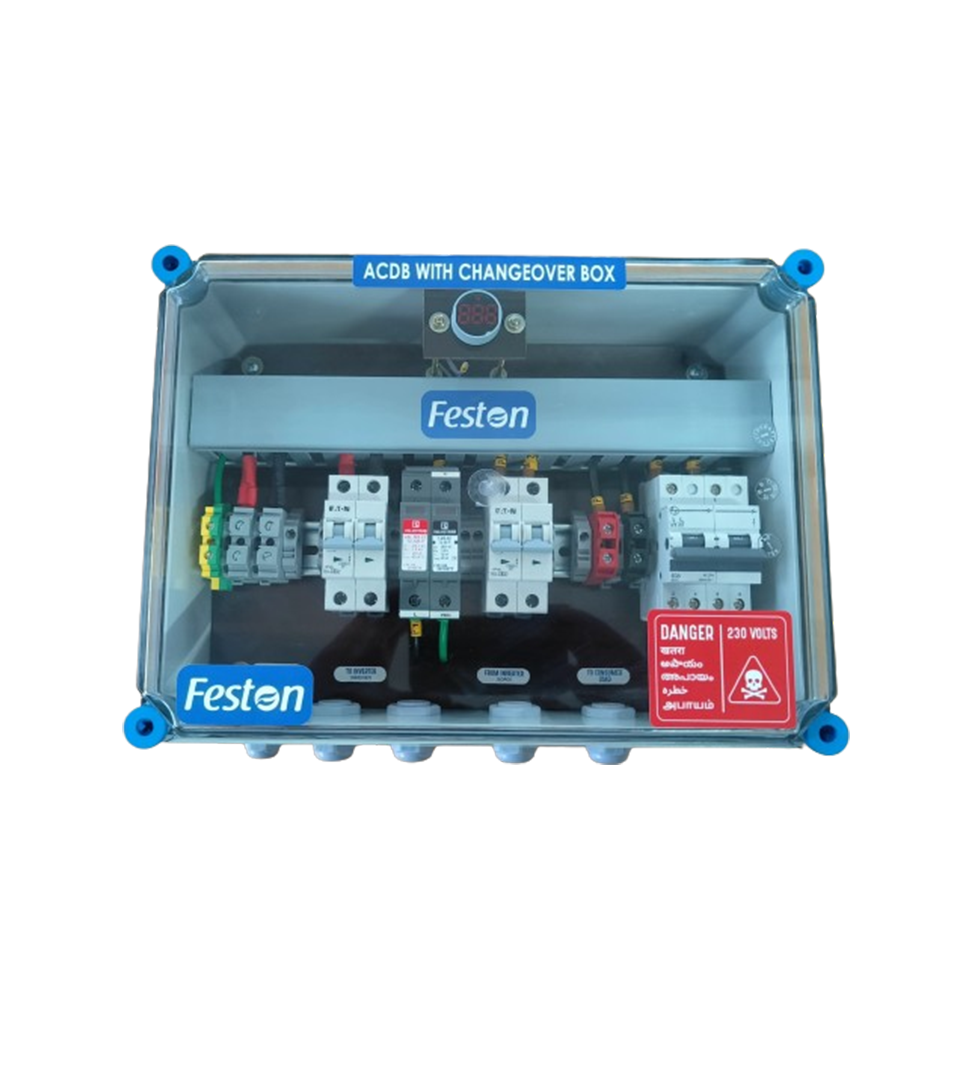

| model | 3-6kW | Single Phase | 8kW | Single Phase | 5-12kW | Three Phase |
| Box Type | Tribox | Tribox | Tribox |
| Box Size | 280x280x130 | 380x280x130 | 560x380x180 |
| System Voltage | 230 V | 230 V | 415 V |
| No. of Strings | 1 In 1 Out | 1 In 1 Out | 1 In 1 Out |
| Changeover | Integrated changeover (Single phase) | Integrated changeover (Single phase) | Integrated changeover (Three phase) |
| Volt Indicator | Digital | Digital | Digital |
| Protection | AC SPD | Type ll | AC SPD | Type ll | AC SPD | Type ll(Three phase) |
| IP Rating | IP66, IP67 | PC Transparent | IP66, IP67 | PC Transparent | IP66, IP67 | PC Transparent |
| Material Type | Polycarbonate | Glass Top | Polycarbonate | Glass Top | Polycarbonate | Glass Top |
| Connectors | Gland | Gland | Gland |
